Product Details:
|
| Name: | Good Insulation Performance And High Temperature Resistance Alumina Ceramic Eyelets | Vickers Hardness: | >11.5Gpa |
|---|---|---|---|
| MOQ: | 2000 | Material: | 95% Al2O3 |
| Puncture Strength: | 15 KV/mm | ||
| High Light: | porous alumina plate,alumina ceramic tube |
||
|
Product Name
|

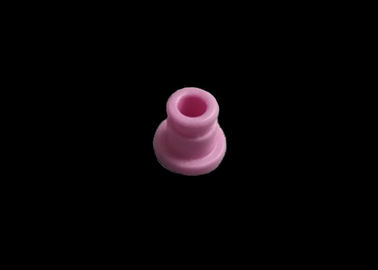

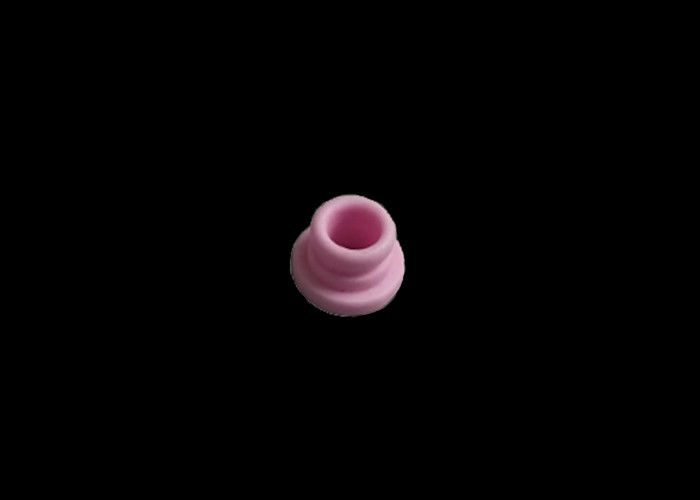

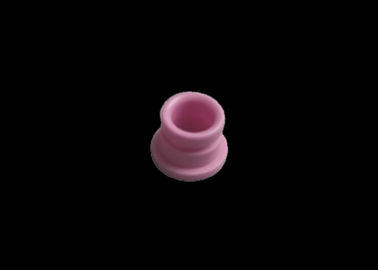

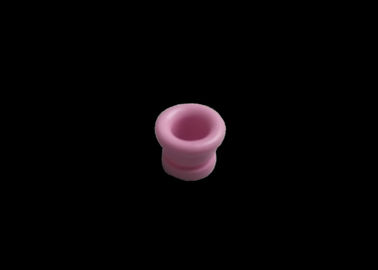

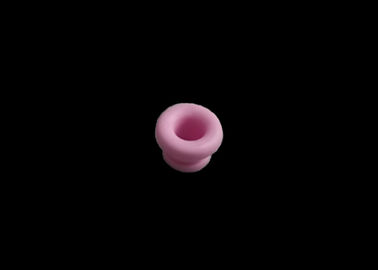

Alumina/Al2O3 Ceramic Eyelets with Groove for Textile Wire Guiding
|
|
Material
|
99% Alumina Ceramics/Al2O3 Ceramics
|
|
Color
|
Ivory
|
|
Surface Finishing
|
Fine Machining
|
|
Customized Manufacturing
|
Available
|
|
Product Feature
|
Low friction coefficient/High mechanical strength/Electrical Insulation
|
|
Usage
|
Ceramic Parts for Textile Machinery
|
1. High hardness.
2. High heat resistance : Alumina ceramic has excellent thermal stability,which means that it is
widely used in areas where resistance to high temperatures is essential.
3. Good wear resistance : Alumina ceramic is the material of choice for alumina wear parts.
4. High electrical resistivity : Alumina is an electrically insulating material.
5. High corrosion resistance : It is insoluble in water and only slightly soluble in strong acid and
alkaline solutions. Good chemical stability of alumina leads to high corrosion resistance.
Material Parameters
| Item | Testing condition | Unit | 95% al2o3 | 99% al2o3 | 99% al2o3 | 99.5% al2o3 | zirconia |
| Bulk density | g/cm3 | >3.60 | 3.7 | 3.7 | 3.7 | 6 | |
| Flexural Strength | N/m2×103 | 2.24 | >2.24 | >2.24 | >2.74 | 11 | |
| Coefficient of linear expansion | 20~800°C | ×10-6/°C | 6.5~8.0 | 6.5~8.0 | 6.5~8.0 | 6.5~8.0 | 9.5 |
| Permittivity | 1MHz | 9~10 | 9~10.5 | 9~10.5 | 9~10.5 | / | |
| 10GHz | 9~10 | 9~10.5 | 9~10.5 | / | / | ||
| Insertion loss | 1MHz | ×10-6 | ≤4 | ≤2.5 | ≤2.5 | ≤1.5 | / |
| 10GHz | ×10-6 | ≤10 | ≤6 | ≤6 | / | / | |
| Bulk density resistance | 100°C | Ω·Cm | >1013 | >1013 | >1013 | >1014 | >1012 |
| Puncture strength | KV/mm | 15 | 15 | 15 | / | / | |
| Thermal conductivity | 20°C | W/m·k | 25.2 | 25.2 | 25.2 | 29.2 | 3 |
1. High heat resistance : Alumina ceramic has excellent thermal stability,which means that it is widely used in areas where resistance to high temperatures is essential.
2. Good wear resistance : Alumina ceramic is the material of choice for alumina wear parts.
3. High corrosion resistance : It is insoluble in water and only slightly soluble in strong acid and alkaline solutions. Good chemical stability of alumina leads to high corrosion resistance.
