Product Details:
|
| Name: | Customerized High Quality High Temperature 95% Alumina Ceramic Tube | Material: | 95% Alumina Ceramic |
|---|---|---|---|
| Flexural Strength: | 290MPA | Surface: | Glazed |
| Using Temperature: | 1500℃ | Shape: | Tube |
| High Light: | porous ceramic disc,porous alumina plate |
||

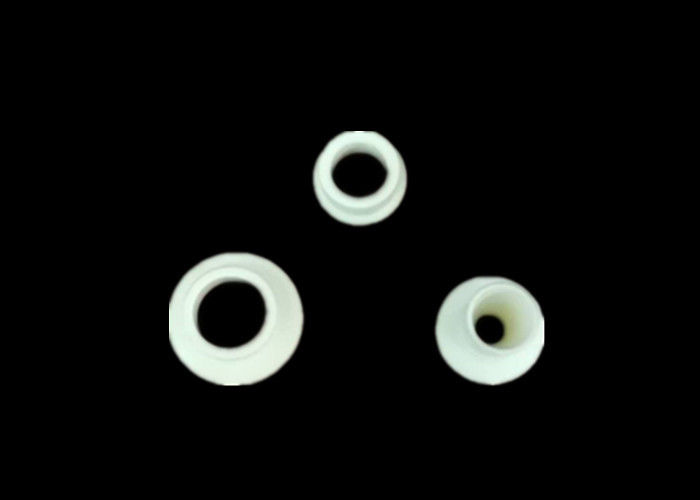

Customerized Aluminum Oxide Ceramic , High Temperature 95% Alumina Ceramic Tube
1.Description
We manufactures custom technical ceramics, covering a wide range of customer requirements .We make use of several forming and machining techniques to process components made from alumina Ceramics, This material may be used in applications that require High elevated temperatures ,High dielectric strength, excellent electrical resistance . wear or corrosion resistance .high temperature capability .High Electrical insulation.
2. Features:
1) A variety of specifications available.
2) Satisfy various technical request
3) Lower medium spoilage
4) Good insulation performance and high temperature resistance
5) Stiffness texture
6) Used in all electric products and electric heating products
7) OEM, ODM and OBM are welcomed
We can supply the products according to customer's drawings, samples and performance requirement.
|
Naterial
|
Unit
|
95% Alumina Ceramic
|
96% Alumina Ceramic
|
99% Alumina Ceramic
|
99.7% Alumina Ceramic
|
|
Density
|
g/cm³
|
3.65
|
3.7
|
3.85
|
3.85
|
|
Flexural Strength
|
Mpa
|
290
|
300
|
350
|
350
|
|
Compressive Strength
|
Mpa
|
3300
|
3400
|
3600
|
3600
|
|
Modulus of Elasticity
|
Gpa
|
340
|
350
|
380
|
380
|
|
Impact Resistance
|
MPam1/2
|
3.9
|
4.0
|
5.0
|
5.0
|
|
Weibull Modulus
|
M
|
10
|
10
|
11
|
11
|
|
Vickers Hardulus
|
HV0.5
|
1800
|
1850
|
1900
|
2000
|
|
Thermal Expansion Coefficient
|
10-6K-1
|
5.0-8.3
|
5.0-8.3
|
5.4-8.3
|
5.4-8.3
|
|
Thermal Conductivity
|
W/Mk
|
23
|
24
|
27
|
28
|
|
Thermal Shock Resistance
|
△T℃
|
250
|
250
|
250
|
280
|
|
Maximum Use Temperature
|
℃
|
1600
|
1650
|
1700
|
1700
|
|
Volume Resistivity at 20℃
|
Ω
|
≥10^14
|
≥10^14
|
≥10^14
|
≥10^15
|
|
Dielectric Strength
|
KV/mm
|
20
|
20
|
25
|
30
|
|
Dielectric Constant
|
εr
|
10
|
10
|
10
|
10
|
• Customized Service
We accept CUSTOMIZATION as different customers in different markets always have different needs and wants. MOQ is varied based on the specific item. From the product itself, the package to the marketing catelogue we can provide according to your demands.
• Live Broadcast Service
We know well of what the customers are feeling when waiting for the order after deposit confirmed. Here World Chemical Co., Ltd. provides Live Broadcast Service to inform you of every step in the production. There will be specially-assigned person mailing you situations for raw materials buying, production starting, finished goods packaging, booking cargo space and etc.
• Onsite Service
We have a professional team of talented application engineers to serve oversea customers. If you have any problem in products application, they can come to your door to solve the problem.
