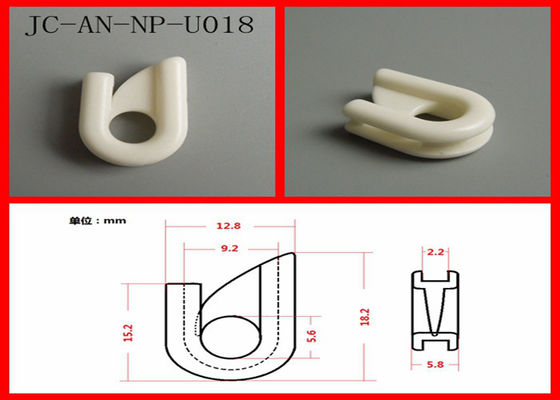

95% Ceramic Wire Guide Eyelets Colored Eyelets Ceramic Yarn Guide

95% Ceramic Wire Guide Eyelets Colored Eyelets Ceramic Yarn Guide
95% Ceramic Wire Guide Eyelets Colored Eyelets Ceramic Yarn Guide

Large Image :  95% Ceramic Wire Guide Eyelets Colored Eyelets Ceramic Yarn Guide

Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: ISO 9001
Model Number: KTJC11
Payment & Shipping Terms:
Minimum Order Quantity: 2000PCS
Price: Negotiable
Packaging Details: CARTON BOX AND PLYWOOD PALLET
Delivery Time: 25 DAYS AFTER PAYMENT
Payment Terms: L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability: 10000PCS/ MONTH

95% Ceramic Wire Guide Eyelets Colored Eyelets Ceramic Yarn Guide

Description
Density: >3.7g/cm3 Name: High Strength Textile Ceramic Eyelets For Industrial Textile Ceramic Parts
Compressive Strength @ 25 C: >2091 Flexural Strength @ 25 C: >276
Color: Red And White Usage: Industry
High Light:

porous alumina plate

,

alumina ceramic tube



Good Quality 95% Ceramic Wire Guide Eyelets Colored Eyelets Ceramic Yarn Guide



Alumina ceramic is the most mature of the engineering ceramics, offering excellent electrical insulation properties together with high hardness and good wear resistance,but relatively low strength and fracture toughness.Alumina ceramic is generally white but may also be pink or ivory.The color is derived from either the sintering additives or impurities in the raw materials.



Property Units
Al2O3 Content % 96 98 99.5 99.7
Density g / cm3 3.70 3.80 3.90 3.92
Color - White White Ivory Ivory
Compressive Strength @ 25 C Mpa 2229 2091 2512 2350
Tensile Strength @ 25 C MPa 200 200 248 252
Flexural Strength @ 25 C MPa 331 276 324 320
Elastic Modulus @ 25 C GPa 290 331 366 380
Hardness : Knoop Rockwell (Gpa) Kg/mm2
R45N
(11.7) 1196
79
(12.5) 1276
77
(14) 1428
85
(15) 1510 90
Thermal Conductivity @ 25 C W / m-Deg K 20.8 28.1



30.7

31.6
Coefficient of Thermal Expansion @ 25-1000 C 1 X 10-6 /
Deg C
7.9 8.5 8.1 8.0
Specific Heat @ 25 C cal / g / Deg C .184 .184 .182 .180
Maximum Working Temp. Deg C 1650 1650 1700 1700
VolumeResitivity @25C @700 C ohm-cm
ohm-cm
1 X 10-13
1 X 10-8
1X 10-13
2.2 X 10-9
1 X 10-13
6 x 10-7
1 X 10-13
6 x 10-7
Dielectric Strength
(@Thickness) 100Mils
ac volts
per mil
350
340
335 330
Dielectric Constant 1Mhz
@25C
e' / eo 8.6 9.4 9.7 10.0
Dissipation Factor 1 Mhz
@25C
Tan Delta .0004



.0003



.0003

.0002



Main Features

1) High hardness.

2) High heat resistance: alumina ceramic has excellentthermal stability,which means that it is widely used in areas where resistance to high temperatures is essential.

3) Good wear resistance: alumina ceramic is the material of choice for alumina wear parts.

4) High electrical resistivity: alumina is an electrically insulating material.

5) High corrosion resistance: it is insoluble in water and only slightly soluble in strong acid and alkaline solutions. Good chemical stability of alumina leads to high corrosion resistance.
