Product Details:
|
| Length: | 3600-7200mm | Density: | 128KG/M3 |
|---|---|---|---|
| Using Temperature: | 1260℃ | Application: | Refractory |
| Strength: | Good | Color: | White |
| High Light: | ceramic insulation blanket,ceramic fiber blanket |
||

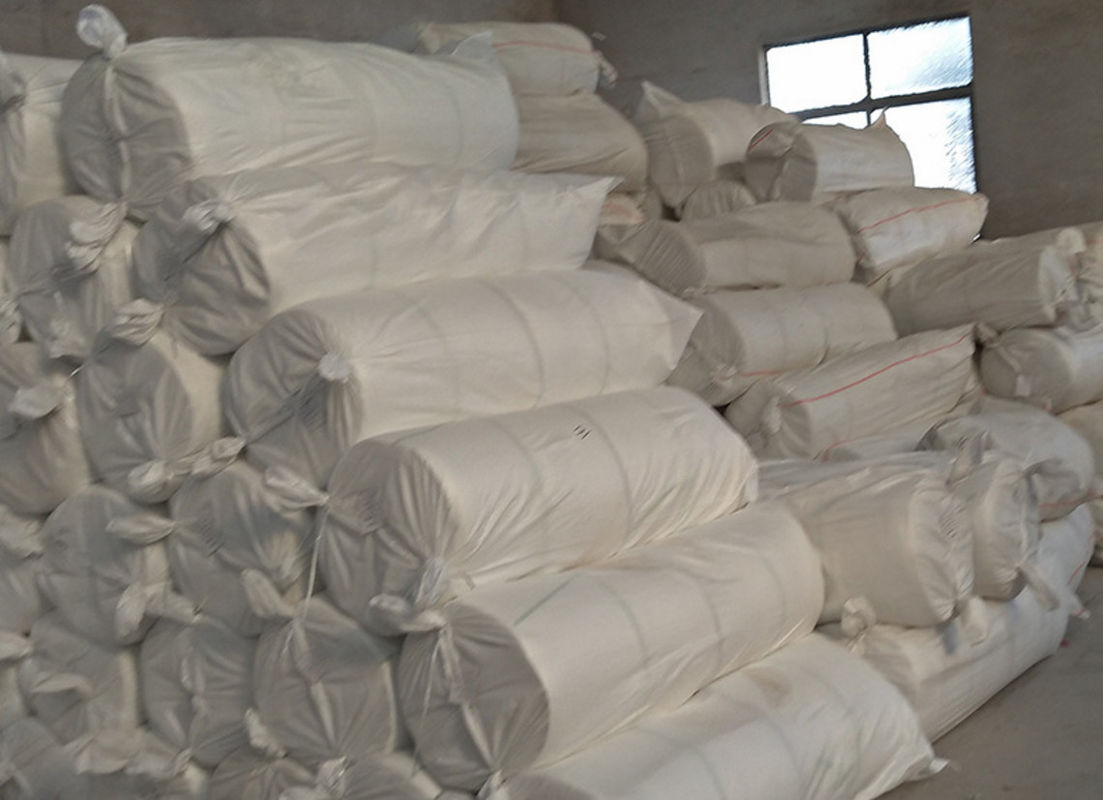

Fireproof insulation 1260C Refractory ceramic fiber blanket for furnace
1. Description
Ceramic fiber blanket from ceramic fiber wool, natural refractory raw material, and a small amount of organic binder, and adopting the completely automated control continuous production technology. Because of the high fiber content, it has the characteristics of high temperature, light weight, and heat shock resistance, which is one of the important guarantee factors of kiln energy-saving, cost-reducing, high quality and yield, can be widely used in industrial kiln heat insulation layer.
Ceramic Fiber Blanket is an ideal thermal insulation , fire-proofand sound-absorbing material. The Ceramic Fiber Blanket is composed of long, flexible, interwoven fibers manufactured by the blownand the spunprocess yielding a strong, light weight, durable blanket for applications in a temperature range from 1100° C (2012° F ) to 1430° C (2600° F).The ceramic fiber blanket is completely inorganic and is needled to provide exceptional handling strength,used in a variety of heat processing applications.
2. Characteristics
Low thermal capacity, low heat conductivity
Non-brittle material, good elasticity
Good wind erosion resistance performance, long service life
Excellent thermal stability and thermal shock resistance
Good Sound-absorbing performance
Rigid, self-supporting plate
Good anti-strip performance
Easy molding and cutting
3. Features
4. Data Sheet
| Description | Common | Standard | High Purity | High Alumina | Zirconia | |
| Maximum temperature (°C) | 1100 | 1260 | 1260 | 1360 | 1430 | |
| Working Temperature (°C) | < 1000 | 1050 | 1100 | 1200 | 1350 | |
| Color | white | white | white | white | white | |
| Density (kg/m3) | 96-128 | 96-128 | 96-128 | 128-160 | 128-160 | |
| Shrinkage(%)of heating 24 hours | -4 | -3 | -3 | -3 | -3 | |
| (as density 128 kg/m3) | (1000°C) | (1000°C) | (1100°C) | (1250°C) | (1350°C) | |
| Thermal conductivity (w/m.k)(Density 128 kgs/ m3) | 0.09(400°C) | 0.09(400°C) | 0.09(400°C) | 0.12(600°C) | 0.16(800°C) | |
| 0.16(800°C) | 0.16(800°C) | 0.16(800°C) | 0.20(1000°C) | 0.20(1000°C) | ||
| Tensile strength (MPa) | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | |
| (density as 128kg/m3) | ||||||
| Chemical composition(%) | AL2O3 | 44 | 46 | 47-49 | 52-55 | 39-40 |
| AL2O3 & SIO2 | 96 | 97 | 99 | - | - | |
| AL2O3 & SIO2 & ZrO2 | - | - | - | 99 | 99 | |
| ZrO2 | - | - | - | 15-17 | 15-17 | |
| Fe2O3 | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 | |
| Na2O & K2O | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 | |
5. Product Application
Ceramic industry:
1. Kiln car insulation and seals
2. Continuous and batch kilns
Steel industry:
1. Heat treating and annealing furnaces
2. Furnace door linings and seals
3. Soaking pit covers and seals
4. Furnace hot face repairs
5. Reheating furnace and ladle covers
Refining and petrochemical:
1. Reformer and pyrolysis lining
2. Tube seals,gaskets and expansion joints
3. High temperature pipe,duct and turbine insulation Crude oil heater linings
Power generation:
1. Boiler insulation
2. Boiler doors
3. Reusable turbine covers
4. Expansion seals/pipe coverings
Other:
1. Insulation of commercial dryers and ovens
2. Veneer over existing refractory
3. Stress relieving insulation
4. Glass furnace crown protection
5. Fire protection
