High Temperature Mullite Kiln Shelves Refractory Slab For Magentic Materials

High Temperature Mullite Kiln Shelves Refractory Slab For Magentic Materials
High Temperature Mullite Kiln Shelves Refractory Slab For Magentic Materials

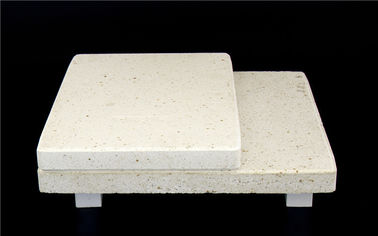

Large Image :  High Temperature Mullite Kiln Shelves Refractory Slab For Magentic Materials

Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: SGS
Model Number: KTMK16
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: PLYWOOD BOX
Delivery Time: 25 DAYS AFTER PAYMENT
Payment Terms: T/T, L/C, Western Union, MoneyGram,PAYPAL
Supply Ability: 5000PCS PER MONTH

High Temperature Mullite Kiln Shelves Refractory Slab For Magentic Materials

Description
Type: Kiln Shelf Shape: Plate
Density: 2.4-2.7g/cm3 Al2O3: ≥65%
SiO2: 23-33% Application: Kiln
High Light:

lightweight kiln shelves

,

round kiln shelves

High temperature resistance Refractory Mullite slab for kiln



1.Description

Mullite makes the ceramic manufacture of products like catalytic converters possible. They constantly heat up and cool down quickly and must not crack because of the shock.These converters get their thermal shock resistance properties from a bonded matrix of low-expansion mullite crystals. These crystals form during firing between 1300 to 1400C (interestingly, cordierite crystals have a lesser thermal expansion along one axis than another). Thus, the better the density of the precursor mix and controlled the firing the better the properties of the cordierite material are.

While mullite ceramic vessels could be made (e.g. ovenware), the material has such a low thermal expansion it is very difficult (or impossible) to match a glaze (without crazing). Notwithstanding this, many recipes can be found for mullite ovenware or flameware. However these are seldom fired above cone 10 so any thermal shock resisting behavior they have is attributable to grog content or open fired matrix rather than to any cordierite development (which is of course not happening).


2. Specification

Item KT-MU1 KT-MU2
Al2O3 75% 65%
SiO2 23% 33%
Volume density (g/cm3) 2.70 2.65
Show porosity (%) 14.5 17
Breaking strength at RT 13 Mpa 11Mpa
AT 1400 ℃ 9Mpa 7Mpa
Compressive strength 70Mpa 65Mpa




3. Application

Mullite slab is widely used to sinter pottery , ceramic insulator and so on.Using temperature is  about 1400 ℃.



4. Package

We use Plywood box to pack Mullite slab.

We have professional logistic company, they can deliver to any port in the world and they can offer very good price.
